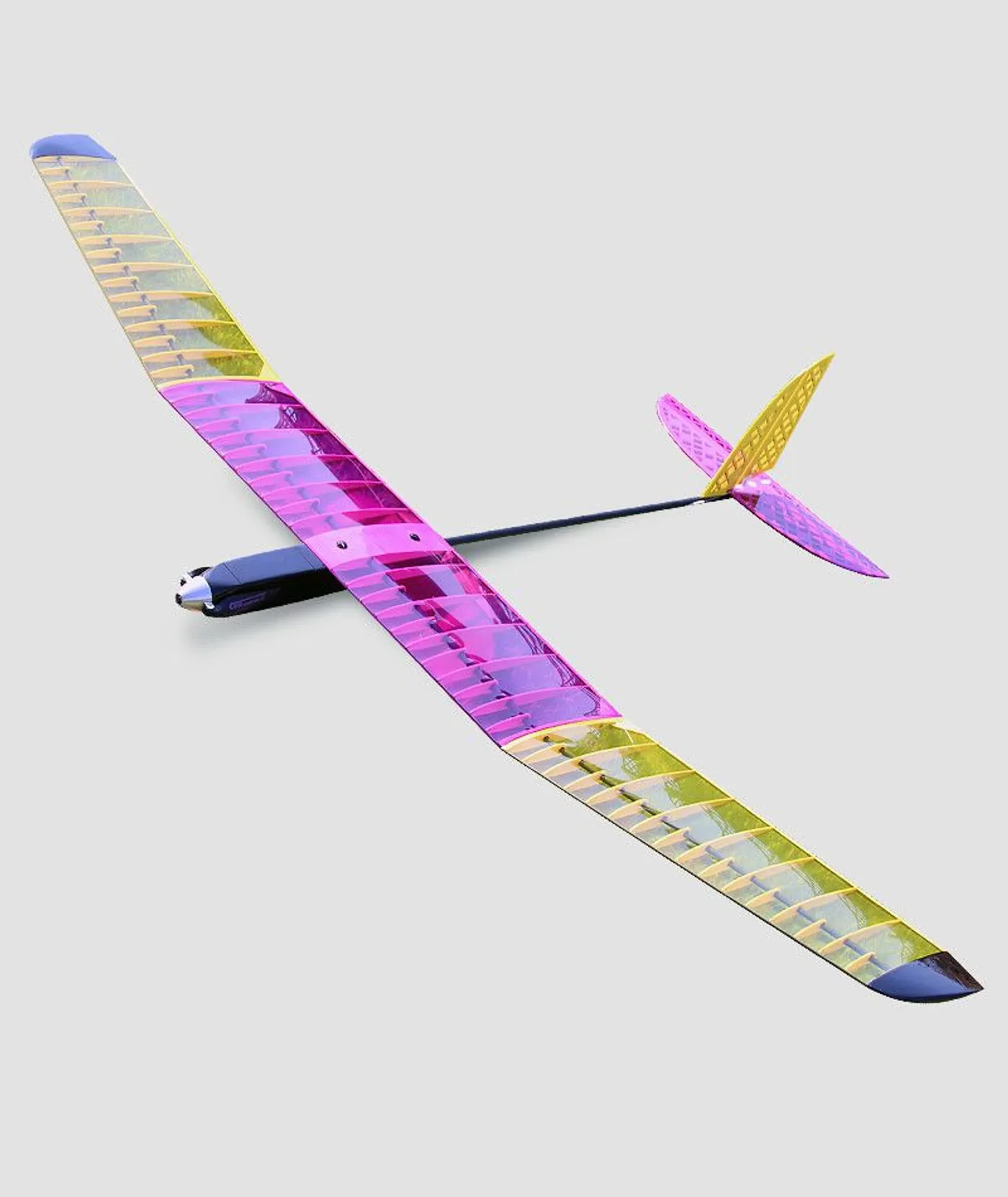

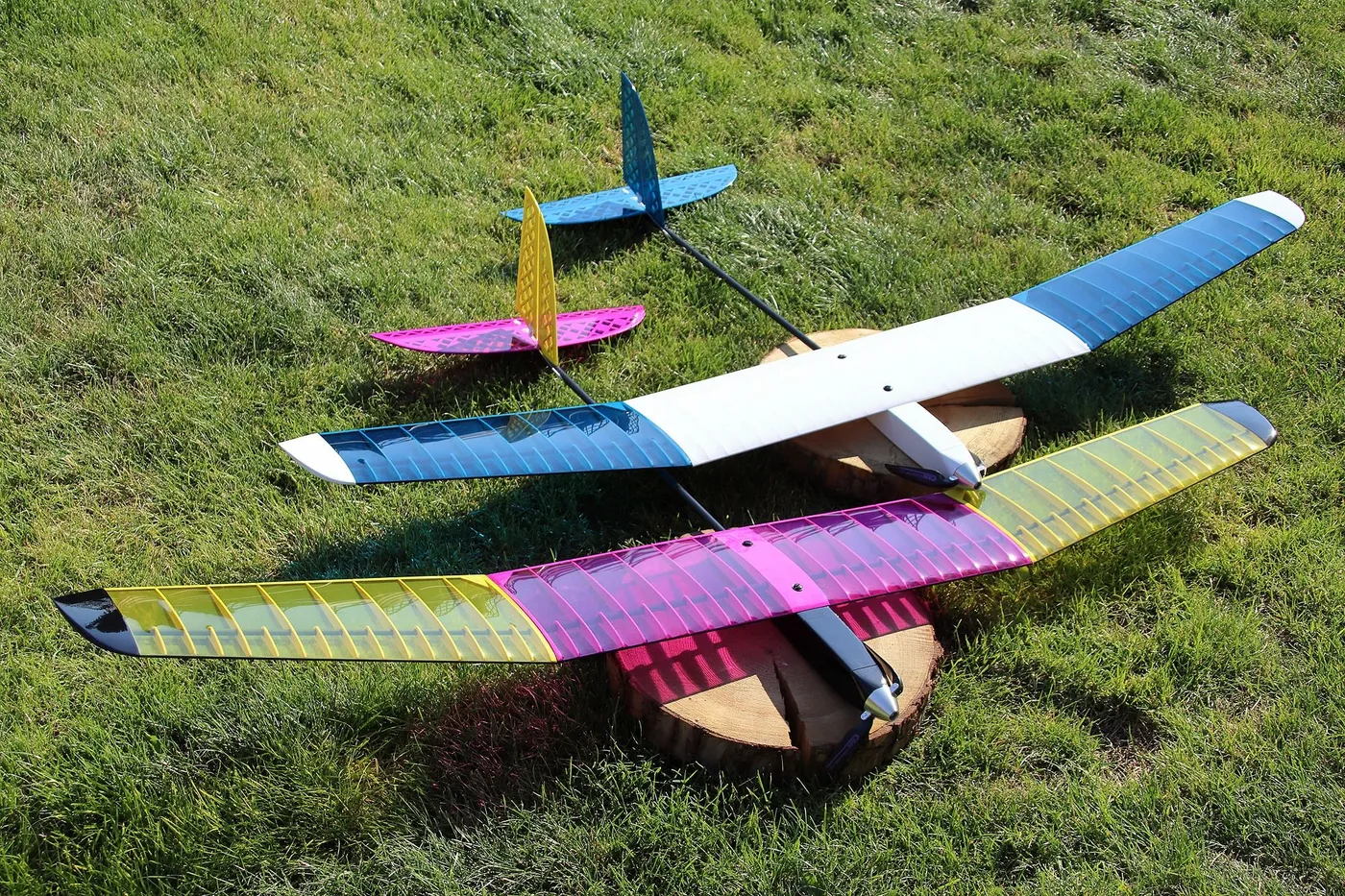

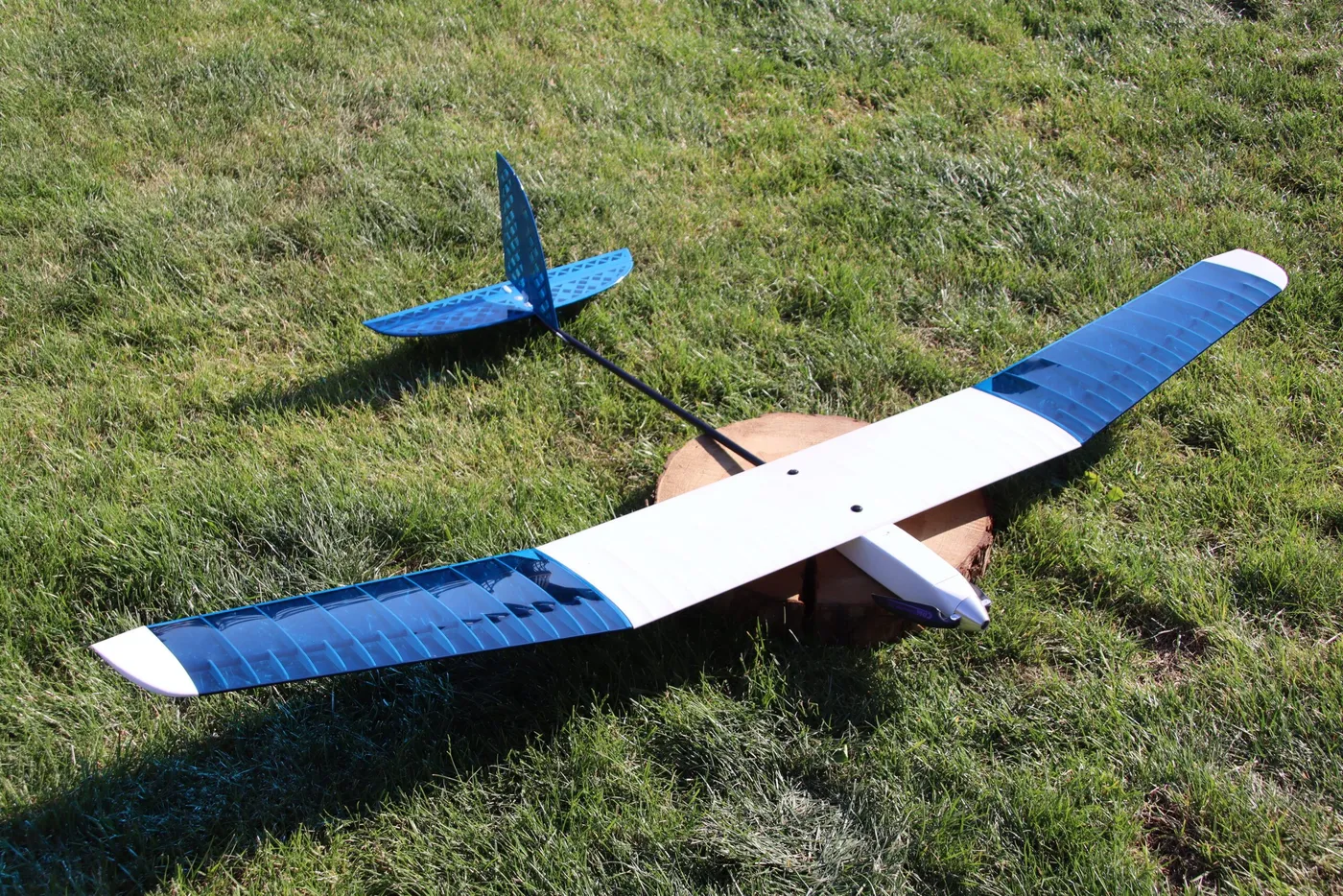

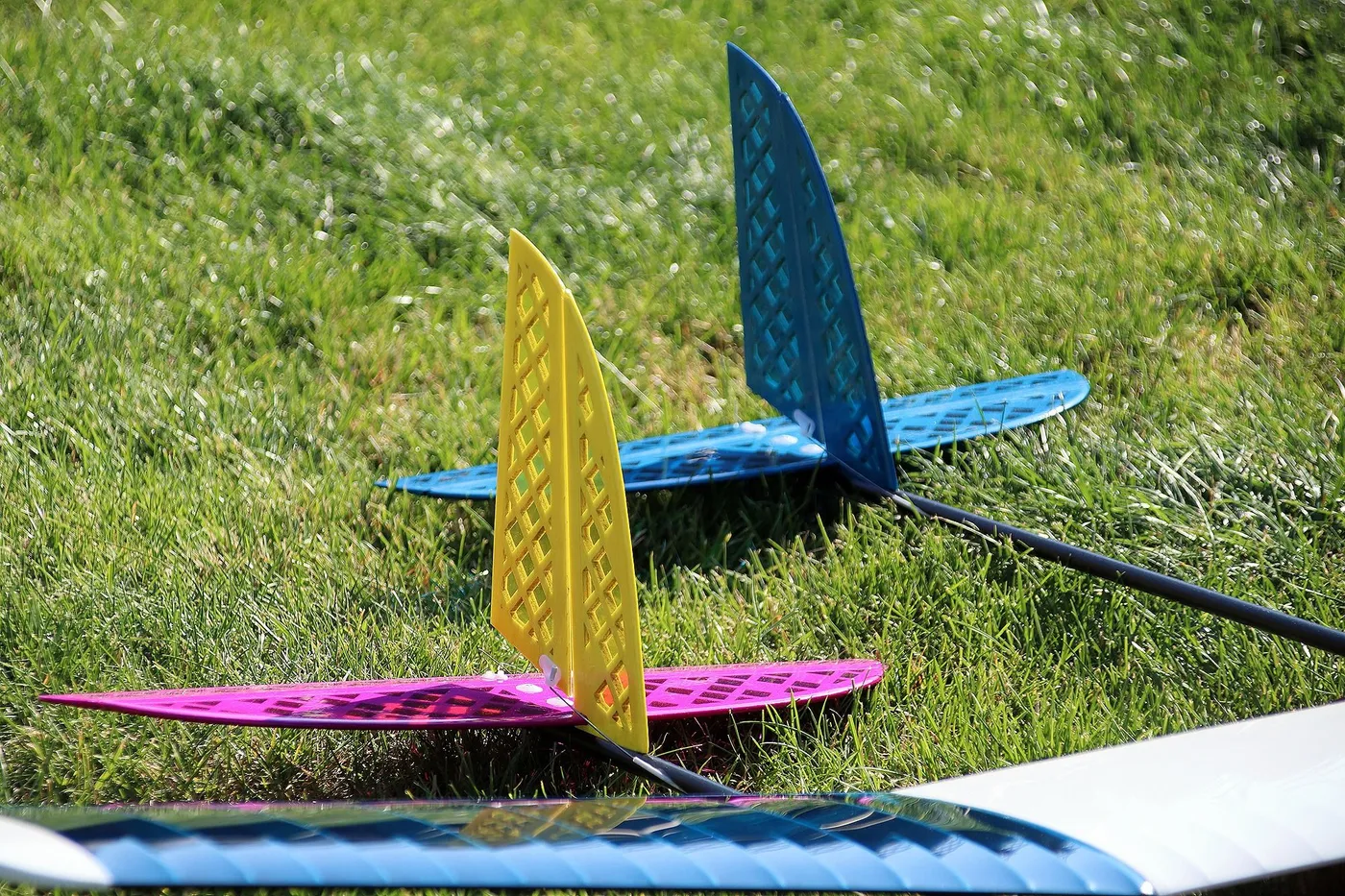

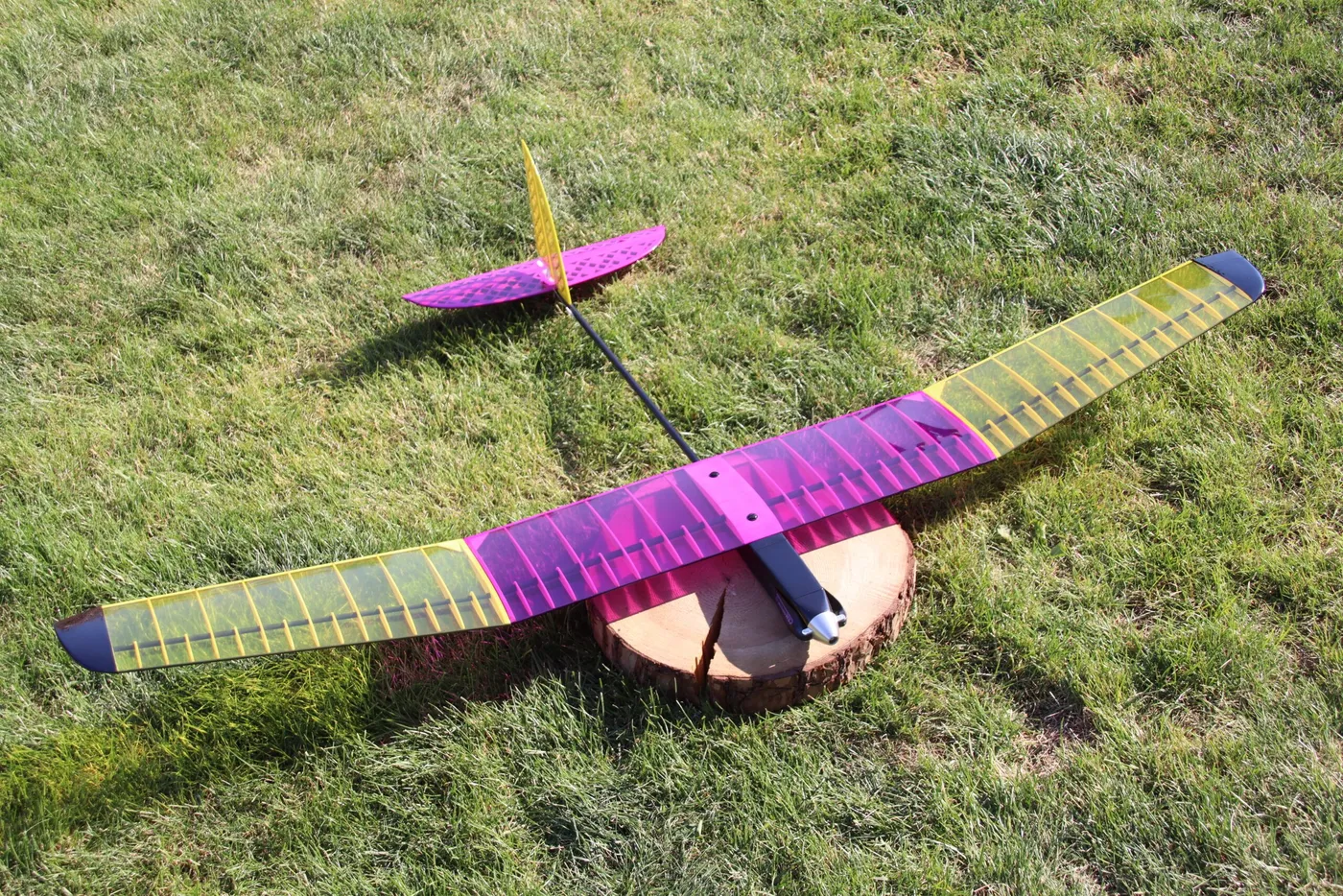

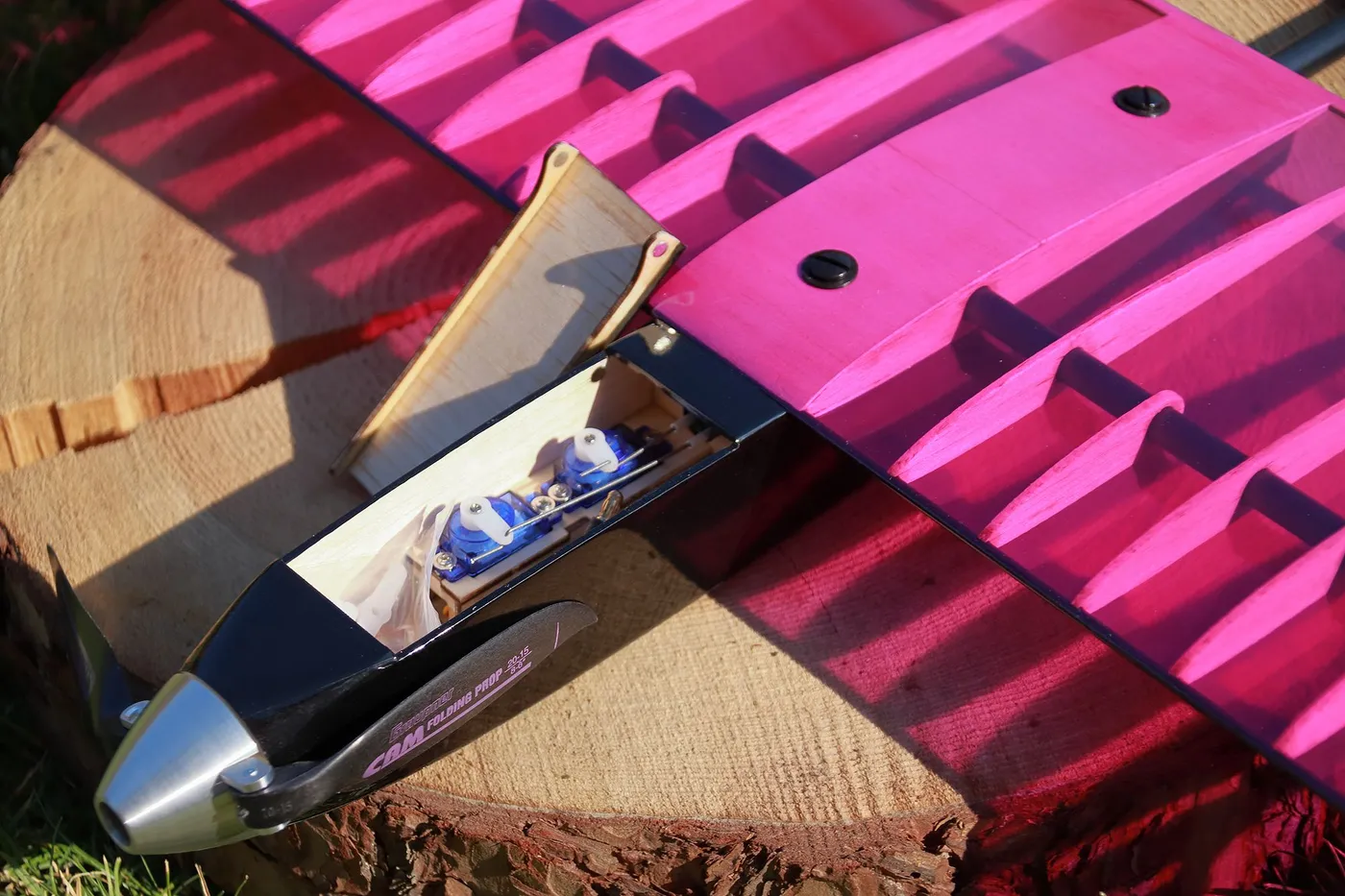

Freya E – F5K RC glider – 150cm/59in – KIT

KIT Version includes:

– laser cut elements from balsa wood
– laser cut elements from plywood
– 3d printed elements
– carbon tubes
– nylon wing bolts
– steel nuts
– bowdenes and pushers
– control levers
– model building plan (instruction)

What you need to have to build and fly:

– 2x servo 5-9g
– 2S Li-Po battery
– electric motor eg.  Redox BLF420/1000 (maximum diameter 28mm)
– ESC 10-15A
– 36mm spinner
– folding propeller eg. 7×6
– micro receiver (3-channels)
– Oracover or Monocote foil or other lightweight covering material
– wood glue
– CA glue thin and thick

Technical data:

– flight weight: ~350g
– wingspan: 1500mm / ~ 59in
– length: 900mm / ~ 35,5in
– wing profile: hn1033
– wing area: 24 dm2
– wing loading: 14.5 g / dm2

See how our glider flies!
